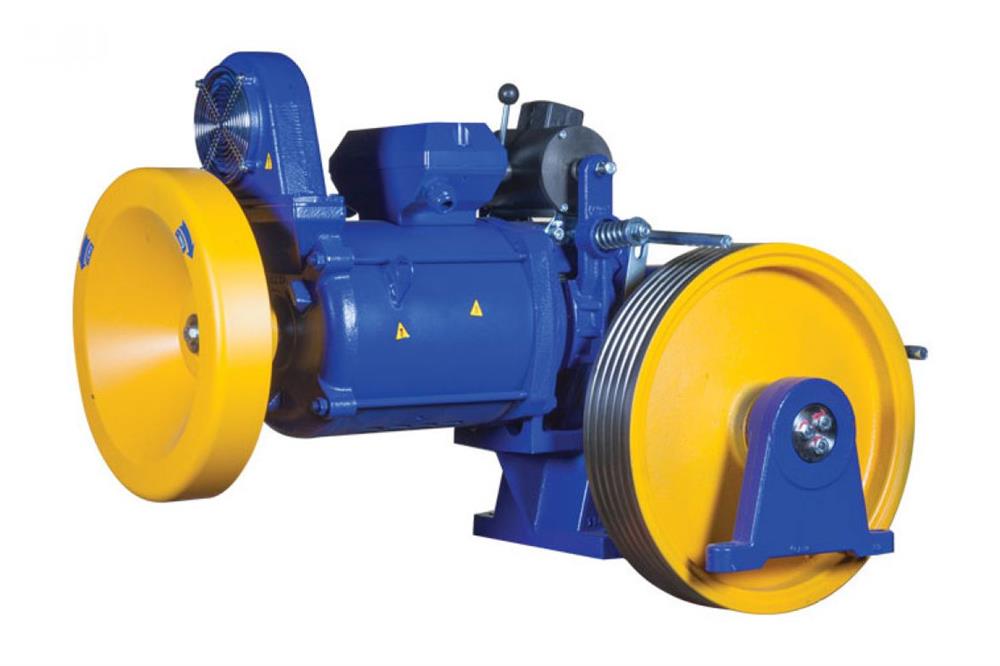

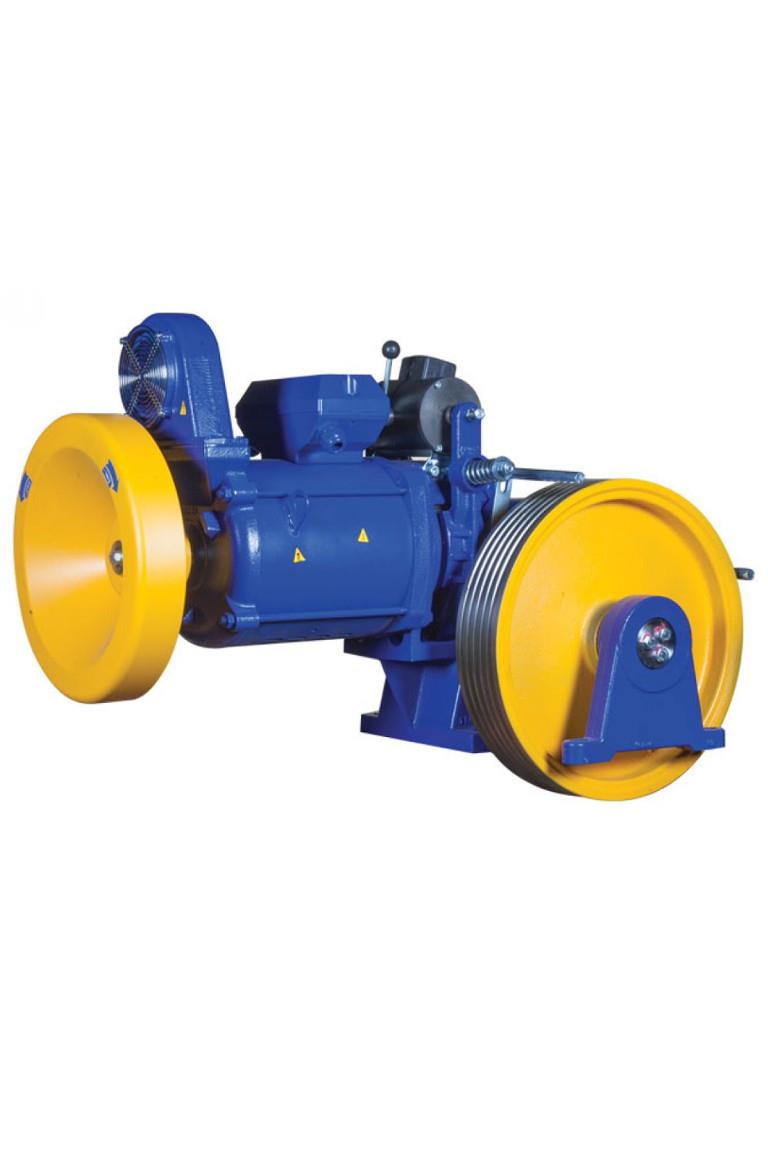

Z82-YAN YATAKLI DİŞLİLİ MAKİNE MOTORU

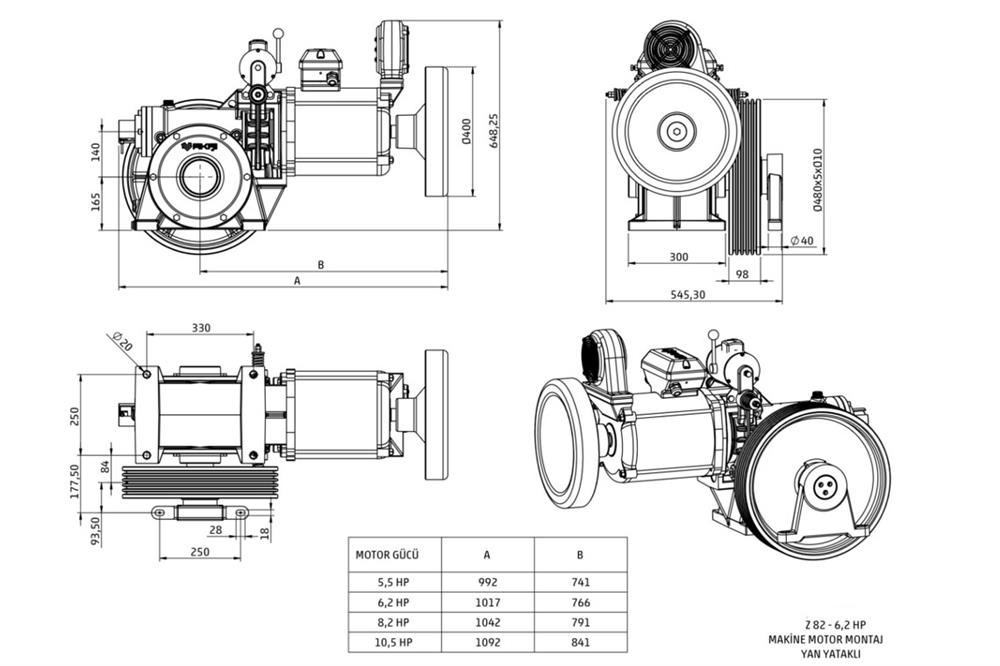

Z82-YAN YATAKLI DİŞLİLİ MAKİNE MOTORU-TEKNİK ÇİZİM
Akis Z82 lift machine motor - With External Support, maximum static load is 4.000 kg. Capacity 320 – 800 kg. for 1:1 roping. Maximum cabin speed is 1,60 m/s. Power for VVVF motor is 4,0 – 7,5 KW.
|
Model
(Product Type)
|
Askı Tipi
(Suspension Type)
|
Kasnak Ölçüsü
(Pulley Size)
|
Statik Yük
(Static Load)
|
Kabin Hızı
(Car Speed)
|
Kapasite
(Capasity)
|
Oran
(Rotio)
|
| Z 82 5,5 HP |
1:1 |
Ø480x5xØ10 |
4000 KG |
1,00/0,25 m/s |
450 KG |
38/1 |
| Z 82 6,2 HP |
1:1 |
Ø480x5xØ10 |
4000 KG |
1,00/0,25 m/s |
525 KG |
38/1 |
| Z 82 8,2 HP |
1:1 |
Ø480x5xØ10 |
4000 KG |
1,00/0,25 m/s |
630 KG |
38/1 |
| Z 82 10,5 HP |
1:1 |
Ø480x5xØ10 |
4000 KG |
1,00/0,25 m/s |
960 KG |
38/1 |
